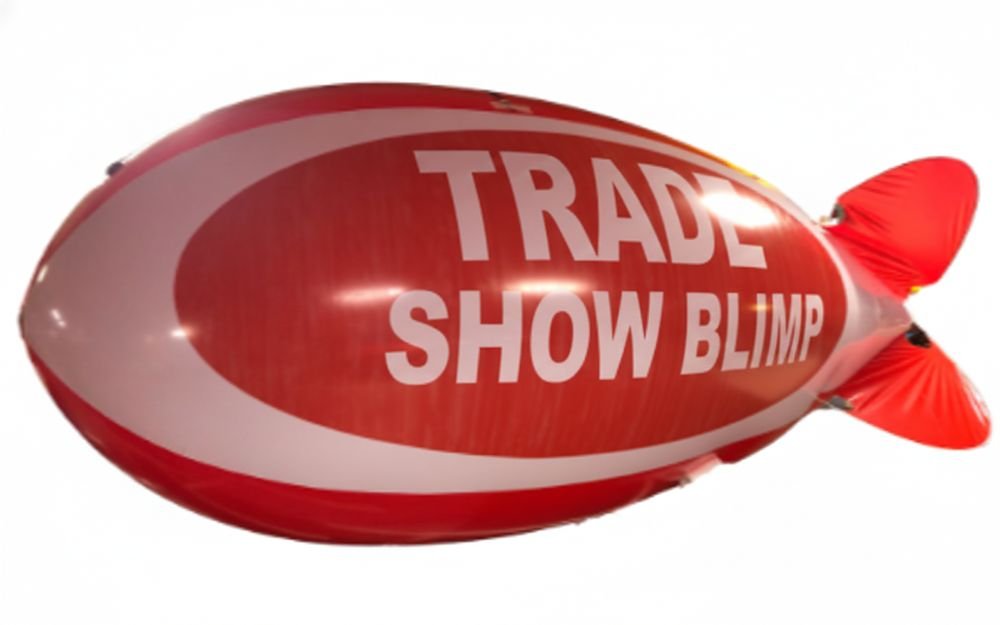

Polyurethane Blimps
When investing in outdoor tethered helium advertising, the material selected for the aerostat envelope determines flight stability, helium gas loss, operational lifespan, and long-term cost. While imported Polyvinyl Chloride (PVC) blimps dominate search results due to lower initial purchase prices, high-grade Thermoplastic Polyurethane (TPU) engineered aerostats deliver vastly superior helium retention, structural resilience, and return on investment (ROI).
1. Executive Material Comparison
Polyurethane is an advanced elastomer engineered with a tight molecular matrix, whereas PVC is a rigid synthetic polymer softened with plasticizers. Under constant solar radiation, atmospheric tension, and helium pressurization, these materials behave radically differently.
| Specification / Metric | USA-Made Polyurethane (TPU) | Imported Polyvinyl Chloride (PVC) |
| Material Thickness | 3.5 mil to 6.0 mil (lightweight high-tensile) | 8.0 mil to 14.0 mil (heavy, structural deadweight) |
| Helium Permeation Rate | ~0.5% to 1.0% per 24 hours | ~2.5% to 4.5% per 24 hours |
| Useful Operational Lifespan | 3 to 5+ years (UV-stabilized, reusable) | 3 to 6 months (plasticizer migration causes failure) |
| Material Raw Cost | ~8x higher than PVC film | Commodity low-cost polymer |
| Cold-Crack Threshold | Flexible down to -30°F (-34°C) | Brittle/cracks near 32°F (0°C) |
| High Heat & UV Tolerance | Retains elasticity up to 130°F+ (54°C) | Softens, warps, leaches oily plasticizers |
| Wind & Aerodynamic Lift | Rated up to 25–30 mph sustained gusts | Pushes down/drags at 15–20 mph |
| Manufacturing Origin | Glendale, Arizona, USA | Overseas / imported mass production |
2. Helium Retention & The True Operating Cost
The purchase price of an advertising blimp represents only a fraction of its total operating expense. With industrial helium prices averaging $250 to $350+ per standard high-pressure cylinder (and exceeding $1,000 in volatile convention markets like Las Vegas), helium permeation is your largest recurring cost.
The Physics of Permeation
Helium is an exceptionally small monoatomic molecule ($0.28\text{ nm}$ kinetic diameter).
- PVC Permeability: Flexible PVC relies on chemical plasticizers to stay pliable. In sunlight, these plasticizers outgas and migrate, leaving microscopic pathways that allow helium atoms to leak through the envelope wall. A standard PVC blimp loses its pressurized shape within 3 to 5 days, requiring frequent topping-off.
- Polyurethane Barrier Performance: TPU forms a dense, non-porous molecular lattice that physically traps helium atoms. High-grade polyurethane envelopes retain positive internal lift for up to 2 to 4 weeks before requiring topping-off.
90-Day Operational Cost Breakdown: 17-Foot Aerostat
| Expense Category | 17′ Polyurethane Blimp (USABLIMPS) | 17′ Imported PVC Blimp |
| Envelope Initial Cost | $1,800 – $2,500 | $500 – $800 |
| Envelope Volume | ~230 cu. ft. | ~230 cu. ft. |
| Initial Helium Inflation | ~1 standard cylinder (~$300) | ~1 standard cylinder (~$300) |
| Monthly Helium Top-Offs | ~0.5 cylinder / month (~$150) | ~2.5 cylinders / month (~$750) |
| 90-Day Gas Maintenance | $450 | $2,250 |
| 90-Day Total Operational Cost | ~$2,550 – $3,250 | ~$3,050 – $3,350+ |
| Status After 90 Days | Envelope pristine, fully reusable | Envelope brittle, sticky, or decommissioned |
By day 60 to 90, the lower gas loss of a polyurethane blimp pays for the initial price difference. After three months, the PVC blimp operates at a net loss while nearing end-of-life.
3. Engineering: Aerodynamic Lift vs. Deadweight
Tethered advertising blimps are not passive party balloons; they are moored aerodynamic lifting bodies:
- Gross Envelope Weight: Polyurethane delivers equal or greater tensile burst strength at half the material thickness of PVC. A 13-foot polyurethane envelope weighs roughly 4.5 lbs, compared to 9–11 lbs for a comparable PVC unit.
- Net Usable Lift: Reduced envelope weight frees up displacement capacity. A polyurethane aerostat flies with higher net positive buoyancy, keeping your tether line taut and your brand visible at higher angles rather than diving toward rooftops in light winds.
- Internal Baffling and Fin Rigidity: Heavy PVC tail fins sag under their own weight, destabilizing the blimp and causing it to sway or spin. Precision-welded polyurethane fins stay rigid, functioning as true horizontal and vertical stabilizers to point the blimp into the wind.
4. Compliance and Mooring Specifications
Deploying tethered marketing aerostats in commercial corridors requires strict adherence to airspace safety:
- FAA Part 101 Regulations: Tethered aerostats operating under 150 feet Above Ground Level (AGL) are generally exempt from advance ATC filing requirements, provided they remain outside immediate airport approach corridors and away from cloud ceilings.
- Tether Line Construction: Always utilize braided Dacron or braided Kevlar lines with rated breaking strengths exceeding 350 to 500 lbs. Avoid single-strand nylon or polypropylene lines that stretch under gust loads or degrade in UV light.
- Anchoring: Ground anchor moorings must be rated for at least 3x the maximum aerodynamic drag calculated at 30 mph gusts (minimum 150–200 lbs counterweight or mechanical tie-down points).
5. Frequently Asked Questions (FAQ)
Why are PVC advertising blimps cheaper up front?
PVC is an inexpensive commodity material imported in mass volume. However, because PVC degrades quickly under UV rays and leaks helium at 3 to 4 times the rate of polyurethane, ongoing helium expenses quickly erase the initial savings.
How long does helium stay inside a polyurethane blimp?
A polyurethane advertising blimp typically flies for 2 to 4 weeks before requiring a minor helium top-off. In contrast, PVC blimps generally require topping-off every 3 to 5 days to prevent envelope sagging and loss of lift.
Can polyurethane advertising blimps withstand high winds?
When moored with a proper harness and tether line, aerodynamically designed polyurethane blimps fly reliably in steady winds of 15 to 20 mph, with gust resistance up to 25–30 mph. During severe weather or high-wind warnings exceeding 30 mph, the envelope should always be brought down to ground level.
Can custom artwork and logos be applied to polyurethane blimps?
Yes. Polyurethane accepts specialized flexible vinyl-urethane inks and digital printing that bond directly to the substrate, eliminating peeling, cracking, or pigment flaking when the blimp is inflated, deflated, and folded.
Where are USABLIMPS products manufactured?
USABLIMPS manufactured aerostats and tethered advertising balloons are fabricated in Glendale, Arizona, USA, using commercial-grade aerospace materials and precision high-frequency heat-sealing technology.
